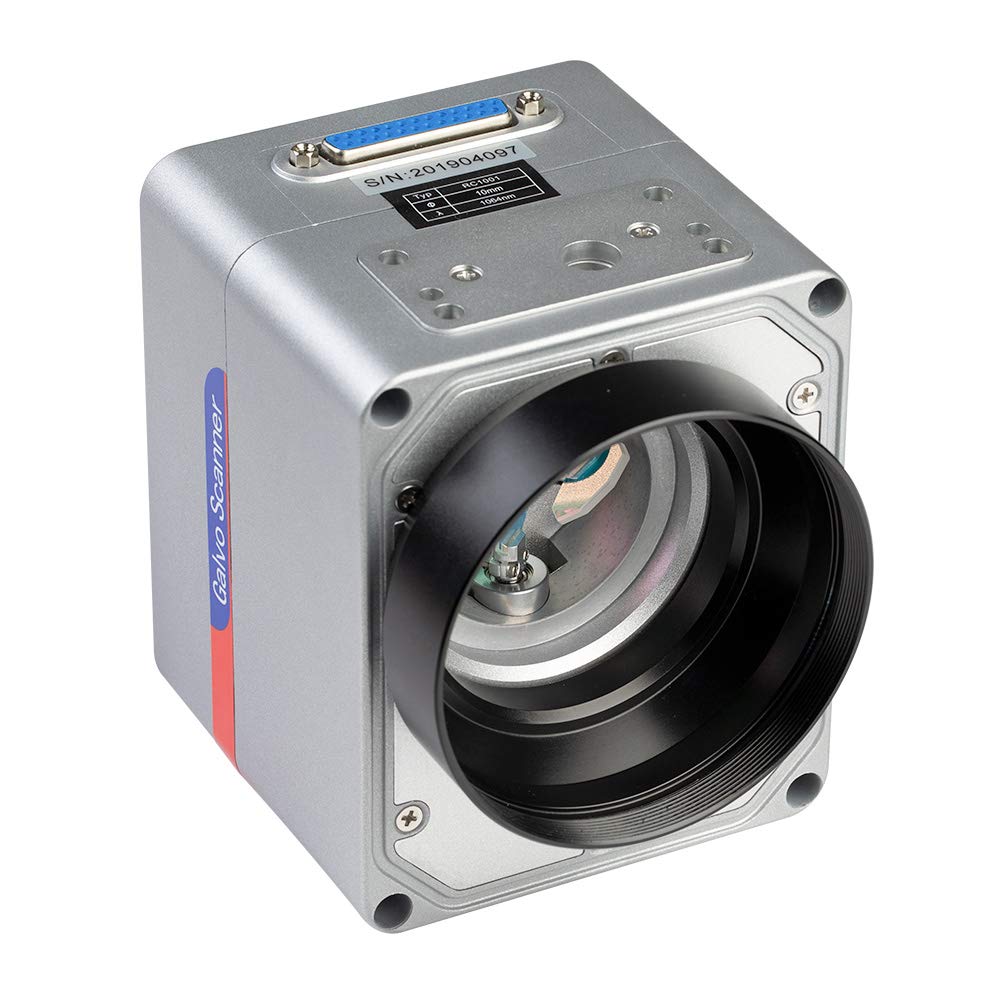

Cloudray RC1001 Fiber Galvo Scanner Head - 10mm Input Aperture, 10.6um Wavelength for CO2 Laser Marking Machines | Precision Laser Engraving on Metal, Plastic & Wood Surfaces

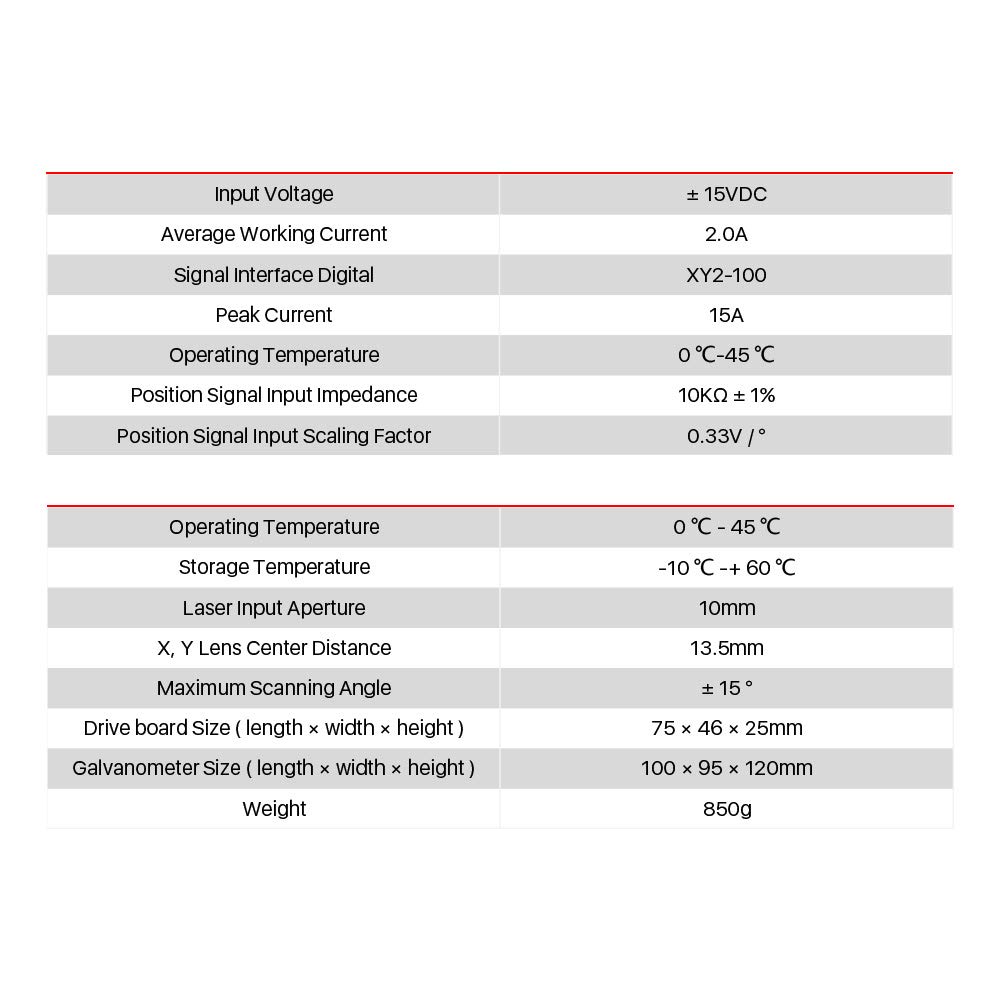

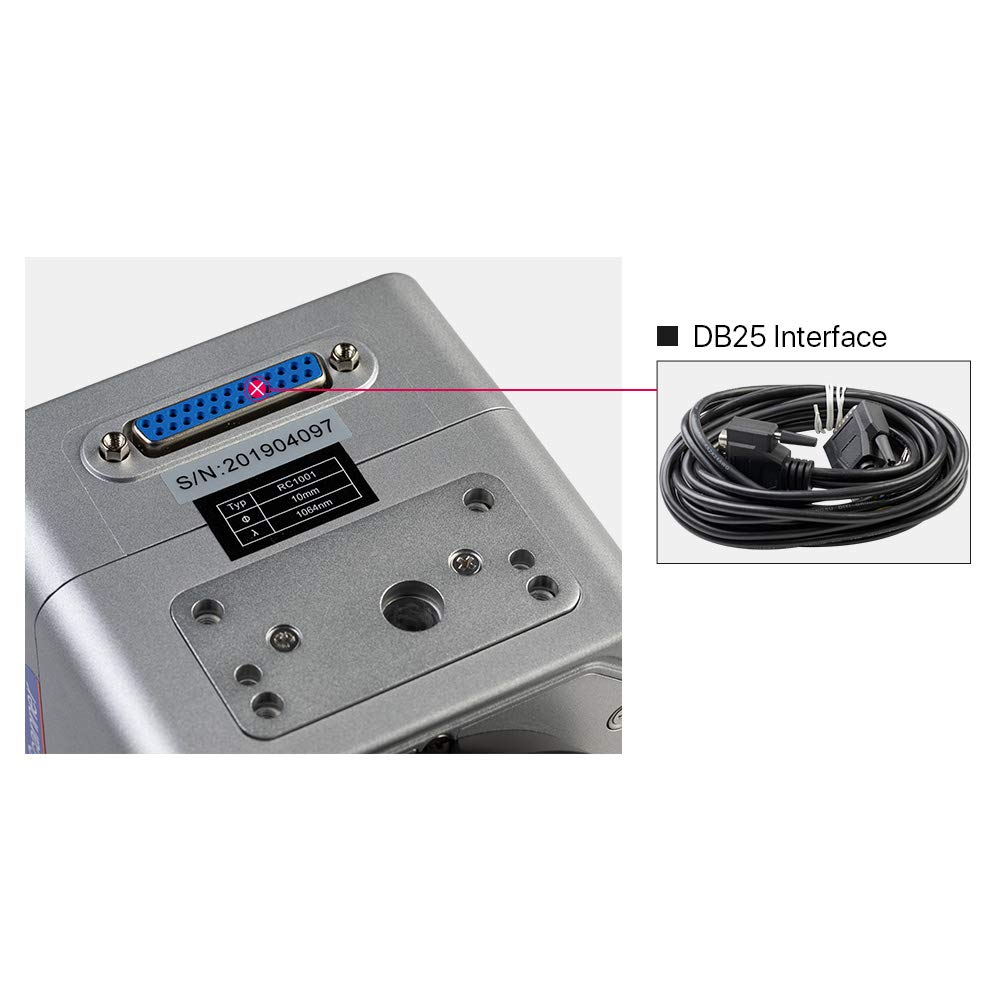

Features Input Aperture：10mmGood degree of Linearity，high resolution small drift, precise repetitive positioning.High speed scanning, stable performance, small zero drift,strong anti-interference.Extensive application: Laser deflection and two-dimensional localization,etc.There are three kinds wavelengths can be choose,10.6um, 1064nm and 355nm. Product Size Specifications Marking Speed 8000mm/s Positioning Speed 10000mm/s Setting Time ≤0.4ms Wavelength 10.6um / 1064nm / 355nm Linearity 99.90% Repeated Positioning Accuracy 8μRad. Long-term Drift (8 hours) ＜0.5mRad Gain Error <8mRad Zero Drift ＜15μRad./℃ Tracking Error ≤180us Proportional Drift ＜40PPM/℃ Input Voltage ± 15VDC Average Working Current 2.0A Signal Interface Digital XY2-100 Peak Current 15A Operating Temperature 0 ℃-45 ℃ Input Impedance 10KΩ ± 1% (Position Signal ) Input Scaling Factor 0.33V / ° (Position Signal ) Operating Temperature 0 ℃ - 45 ℃ Storage Temperature -10 ℃ -+ 60 ℃ Laser Input Aperture 10mm X, Y Lens Center Distance 13.5mm Maximum Scanning Angle ± 15 ° Drive board Size (L*W*H) 75 × 46 × 25mm Galvanometer Size(L*W*H) 100 × 95 × 120mm Weight 850g Signal Port Definition Photos Packing List
